Screw data logging and process control

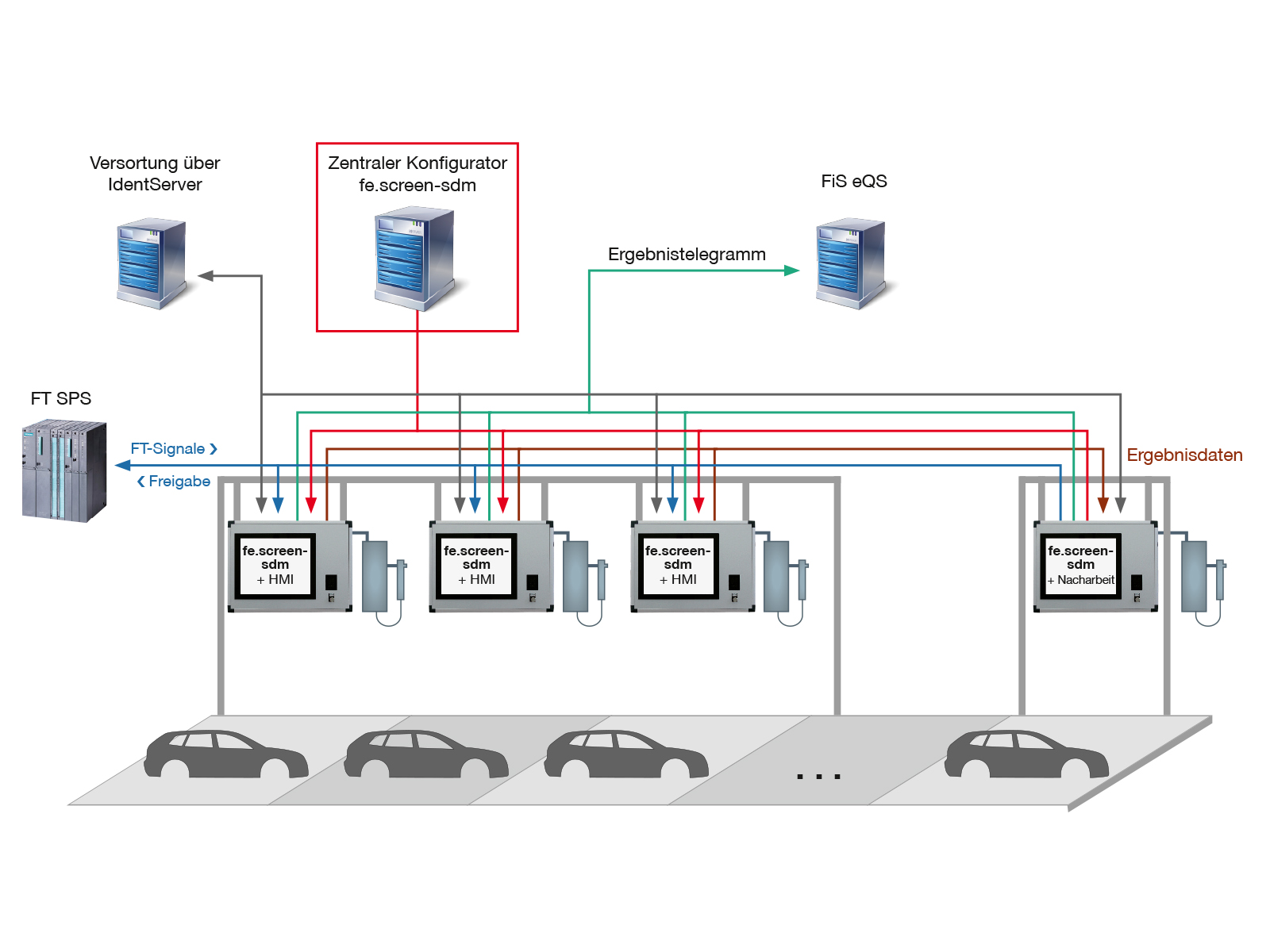

In the final assembly area of automobile production, the unfinished motor vehicle passes through numerous stations in which a few procedures are performed automatically or by the worker in order to further complete the car. These work cycles include countless screw fittings on a range of assemblies, with hand-held or automatic screw systems. Camera systems, Pick-to-Light systems and many more complete the equipment in each of the working cycles. The software fe.screen-sdm , as a configurable standard software for screw data logging with HMI, facilitates management of the diverse control tasks.
![fescreen sdm logo Fe.screen SDM Logo](/fileadmin/_processed_/6/1/csm_fescreen-sdm-logo_9b06d797dc.jpg)
![](/fileadmin/_processed_/a/3/csm_module-sdm_cd1799a05a.jpg)

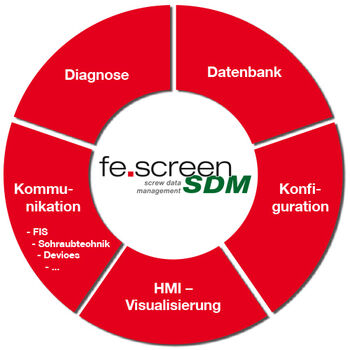

Modularity and expandability
The modular and expandable software controls the devices connected to the production cycle, collects and evaluates screw results, and offers the worker clear graphical user guidance and a rework module.
Through this design based on .NET Framework technologies
- it is possible to exchange or expand complete plant parts.
- tried and tested plant parts are not influenced by the replacement or expansion, and complete the overall system.
- unlimited expandability of work step types exists.
Software features
- Complete process and screw system control in the cycle.
- Conveyance equipment control via (line) PLC or I/O modules.
- Filtering the screw program for the screw systems defined in the cycle and the possibility of local filtering.
- Connection of a quality data server and rework stations.
- Clear graphical user guidance with HMI.
- Central and local configuration.
- Control of multiple cycles via a PC.
- Maximum flexibility through the requirements-oriented replacement of individual modules.
Advantages
- Flexible, comfortable and quality-assured production.
- Device diversity: Supports a wide range of signal transducers, I/O modules, screw systems, scanners, camera systems, etc.
- Modular and expandable design.
- Protocol diversity: Use of standard interfaces and protocols such as Aklan / AklanS, Modbus TCP, RFC1006, ISO 8073, TCP/IP, XML protocol.
- Can also be used as a rework station at the line end.
